LED Indicator & Pushbutton

Standard IEC60947-5-1Power of mechanical compression at closing20N
Rated Insulation voltage Ui(v)400VPower of mechanical compression at opening8 N
Rated Frequency(Hz) 50/60Hz50/60HzOperating temperature (°C)-20 ~ +65
Impulse voltage wear resistance 6000VHumidity35-85%RH
Rated current 6A(230V AC);0.3A(230V DC)Tightening moment of the joining conductors0.15Nm
Mechanical wear resistance1x106 commutation cyclesOpening with sizeΦ 22.5mm

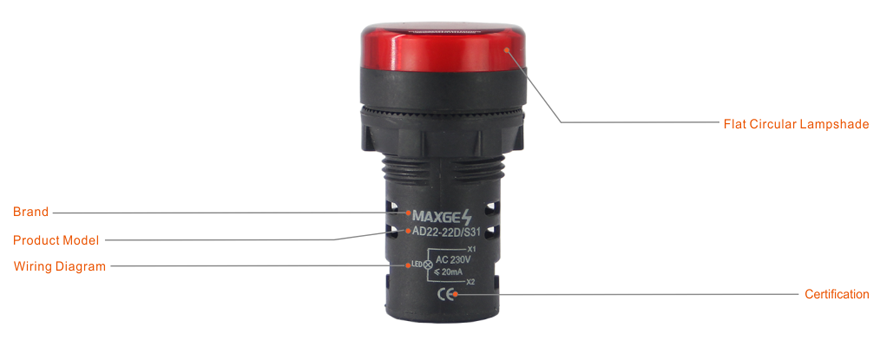

Product Diagram



SGB2 series button indicating device, including indicator light, button, emergency stop button, option switch, toggle switch, control lever, buzzer, potentiometer, etc.; also provides button box and a full range of accessories.
The main advantage of the button indicator is that it has a high protection degree, quick and easy installation. The product can be used in a variety of industrial environments, including outdoor use and some other applications.

Product Features

It is applied to power enterprises, such as factories, power bureaus, substations, etc.
A wide range of applications, such as AC contactor, thermal relay, motor protector, etc.
Wide voltage operation, high reliability and long mechanical life
can be designed according to the requirements of the customer, optimize the product
It conforms to the international standards and has obtained VDE\KEMA\TUV\CE\SEMKO and other certifications.
