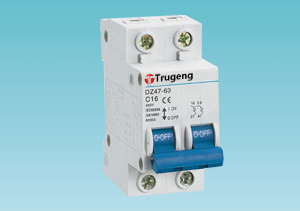

DZ47-63 Mini Circuit Breaker

Application
    The product is mainly used in AC50/60HZ single-pole230V or two, three, four-poles 400Vcircuit

for overload and short-circuit protection as well as for unfrequent on-and-off switching electric

equipment and lighting circuit under normal condition. It can be used in lighting and electric

motor distribution system. It is characterized with novel structure ,light weight, reliable and

excellent performance, high breaking capacity.
It is conformity with GB10963,IEC 60898 standards.

○Main Technical Data
1. Rated current: 1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A,32A, 40A, 50A, 63A.
2. No. of pole: 1p, 2p, 3p, 4p.
3. Tripping characteristics: C(5～10)In; D(10～15)In.

Feature
    The breaker is characterized by compact design, lightweight,elegant appearance, high breaking

capacity, swift tripping, and long service life.

Overall and mounting dimensions
